Specification:
| Model |
CE-7600 |

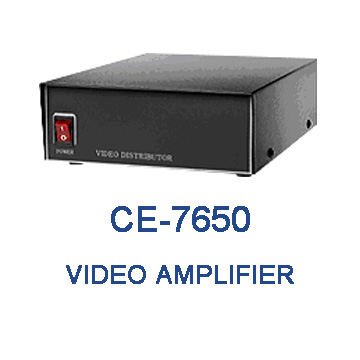

CE-7650 |
|
Description |
video
distributor |
video
amplifier |
|
VIDEO OUTPUT |
0.5-2.0Vp-p / 75Ω
COMPOSITE VIDEO SIGNAL |
THE SAME AS THE LEFT |
|
VIDEO INPUT |
0.7-3.0Vp-p / 75Ω
COMPOSITE VIDEO SIGNAL |
THE SAME AS THE LEFT |
|
VIDEO GAIN |
13db MAX. (ADJUSTABLE) |
THE SAME AS THE LEFT |
|
DISTRIBUTION |
1INPUT DISTRIBUTE TO 6 OUTPUT
2 INPUTS DISTRIBUTE EACH 3 OUTPUT |
1 INPUT, 1 OUTPUT |
|
FREQUENCY |
10Mhz-20Mhz |
THE SAME AS THE LEFT |
|
S/N RATIO |
50db TYPICAL |
THE SAME AS THE LEFT |
|
POWER REQUIREMNT |
AC110V/60Hz
AC220V/50Hz |
THE SAME AS THE LEFT |
|
CONSUMPTION |
4 WATTS |
THE SAME AS THE LEFT |
|
OPERATIING TEMPERATURE |
-10℃-50℃
/ 90%RH |
THE SAME AS THE LEFT |
|
DIMENSIONS |
210(W) * 150(H) *55(D) mm |
THE SAME AS THE LEFT |
|
