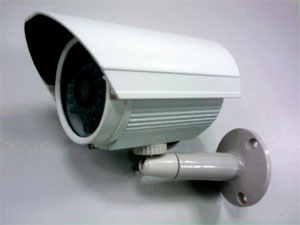

JH-IR142

1/3" Day&Night Color CCD Camera (NTSC/PAL)
Feature:

  1. RESOLUTION: 420 TVL

  2. S/N RATIO: MORE THAN 50 dB(AGC OFF)

  3. IR LED: BUILT-IN 42 IR LED, IR DISTANCE-25 M

  4. LUX: 0.1 COLOR/ LUX:0 WITH IR/F1.8

  5. ELECTRONIC SHUTTER:1/60(1/50)～1/100,000秒

  6. CDS AUTOMATION TO SWITCH COLOR AND B/W SIGNAL

  7. WITH AGC/ AWB/ BLC FUNCTION.

  8. CASE: ALLUMINUM ALLOY FOR RADIATING TO ENHANCE IR LED LIFE

  9. LENS TYPE: FIX- 6MM-F1.8(STANDARD) (OPTION: 4.3m/m，6.0m/m，8.0m/m)

Specification:

MODEL JH-IR142
TV SYSTEM NTSC／PAL（OPTION）
DEVICE 1/3”INTERLINE SONY IMAGE CCD
PICTURE ELEMENT NTSC：537(H)X505(V)／PAL：537(H)X597(V)
EFFECTIVE ELEMENT NTSC：510(H)X492(V)／PAL：500(H)X582(V)
MIN. LUX 0.1 Lux color，0 Lux with IR/F1.8
RESOLUTION 420TVL
S/N RATIO MORE THAN 50 dB（AGC OFF）
AUTO WHITE BALANCE TTL AUTO TRACK（2500∘K～9500∘K）
AUTO SHUTTER AE：1/60（1/50）～1/100,000seconds
SYNC INNER
SCANNING FREQUENCY NTSC:525Lines/60Fields;PAL:625Lines/50Fields
VIDEO OUTPUT 1.0 Vp-p，75 ohm
SCANNING 2：1 INTERLACE
IR ANGLE 60 DEGREE
LED IR 42 PCS IR LED，LIFE:10,000 HOURS
WAVE LENGTH 850nm
POWER DC12V；280mA（max.）；3 W
WEIGHT NET WEIGHT：0.75 kg／0.80 kg
TEMPERATURE -10℃～50℃
SIZE 67(Φ) mm x 110(L) mm
