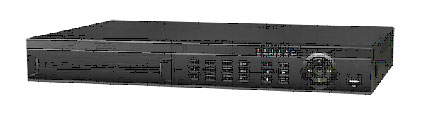

JH-DVR6096

16CH H.264 NETWORK DIGITAL VIDEO RECORDER

Feature:

  1. VIDEO COMPRESS: H.264

  2. USER INTERFACE: GUI

  3. EACH CAMERA CAN AGJUST RECORD FRAME.

  4. EASY CONTROL OSD/PTZ BY MO

  5. PASSWORD PROTECTION AND AUTHORIZATION PROTECTION

  6. BACKUP: 2 SETS USB2.0 AND NETWORK/DVD-RW(OPTION)

  7. BACKUP FORMAT: AVI FOR YOUR CHOICE

  8. AUDIO RECORD: 4 CHANNEL AUDIO INPUT.

  9. RECORD MODE: OPTION, AUTO, SCHEDULE, MOTION-RECORD.

  10. REMOTE CONTROLLER: OPTION

  11. SUPPORT 3G MOBILE REMOTE VIEW (Android/iPhone/iPad/Blackberry)

Specification

MODEL JH-DVR6196
LIVE VIEW 16CH：480 FRMAE（NTSC）／400 FRAME（PAL）
RECORD FRAME（fps）NTSC D1/720x480/120fps / HD1/720x240/240fps / CIF/360x240/480fps /                     EACH CAMERA CAN ADJUST RECORD FRAME.
LIVE DISPLAY 1／4／6／8／9／13／16 SECTIONS，VIDEO SEQUENTIAL，2x2 DIGITAL ZOOM
RECORD FUNCTION OPTION, AUTO, SCHEDULE, MOTION-RECORD
RECORD QUALITY SUPER NICE/NICE/STANDARD/LOW/LOWEST
PLAY RESEARCH TIME SEARCH/EVENT SEARCH/FILE SEARCH
PLAY SPEED FORWARD/REVERSE: x1，x2，x4，x8，x16
OSD DISPLAY HDD INFO/TIME INFO/CARERA SETUP/RECORD SETUP/MENU SETUP
VIDEO INPUT 16CH VIDEO INPUT（BNC）
VIDEO OUTPUT

Main／TV OUTx1／Spot SEQUENTIAL OUTx1

VGA x 1 (800x600~1280x1024)
AUDIO INPUT/OUTPUT 4CH（RCA）/ 1CH
RS-485 PTZ CONTROL
BACKUP USB2.0/NETWORK BACKUP/ DVD-RW(OPTION)
HARD DISK IT CAN INSTALL 2PCS 3.5”SATA HDD(MAX. 2000GB)-OPTION
NETWORK IE VIEW(MAX. 18 USERS)
POWER AC100~240V(12V DC/4A)，50Hz／60Hz
WEIGHT NET：1.5kg／1.8kg(W/O HDD)
SIZE 425(W)mm x65(L)mm x 390(H)mm
